Brand New 3 in 1 Plasma Cutter Welding Machine
Brand New 3 in 1 Plasma Cutter Welding Machine

Want Extra Savings?

Text: SAFER To 1-866-606-3991 For Extreme Steals & Deals!

Sign Up For VIP Steals & Deals...
LIST PRICE: $1,449.95
REGULAR PRICE: $1,349.95
AUG. 8th 8 HR. SALE: $1,199.95
You save $250.00!


Product Code: LOTOS 520D 3-1 PLASMA CUTTER

Shipping

Choose Shipping Method*:

Terms & Conditions

I Agree To Terms & Cond.

Description

Brand New 3 in 1 Plasma
Cutter Welding Machine




As one of the largest manufacturers of plasma cutting, tig/stick, arc (MMA) welding equipment in the world, LotosTech is proud to offer an extensive selection of industrial plasma cutting and tig/stick welding machine, CT520D. Lotos CT520D is designed and constructed to withstand extensive use in rugged industrial and construction environments. It is perfect for any home project too.

You would have to purchase 3 separate machines to do what this ONE machine can do! Using this portable plasma cutter is cheaper than Oxyacetylene after just a few cuts. Less cleaning, less maintenance, less noxious gases, less fire hazard, simply less overall work and a better, cleaner cut. The torch trigger can be moved for a custom fit. It can be used in finger or thumb positions. Torch head is low profile for tight spaces. High Frequency DC Plasma cuts thicker materials than standard DC plasma cutters. High Frequency Plasma cuts faster with less distortion in the work piece. It's packed with full features like the separate machines. The Tig welds from this CT520D are clean and strong. This Tig welder is easier to use than any other Tig welder on the planet! Just flip a switch, set your amperage and weld...It's that simple.

This machine will weld Steel, Stainless Steel, Moly, Ferrous, An ARC welder is a necessity in any industrial shop or home workshop. There are welding jobs that simply require ARC or SMAW (Shielded Metal Arc Welding). Stick welding is cheap and effective. Fill large gaps, holes, weld cast iron and weld extra thick steel with stick. With Arc welding, no shielding gas is required. In many ways stick arc welding is like MIG except there is no wire feed, you have to do that manually. The new released Lotos 3in1 machine has capability of stick welding aluminum.




ORDER ONLINE NOW
OR CALL 1-866-606-3991



Features
  • Three-in-one 50A plasma cutter, 200A tig welder and 200A stick welder
  • Automatic Dual Voltage (110VAC/220VAC) Dual Frequency (50Hz/60Hz)
  • High quality FUJI Mosfets (total 12 pieces) from Japan
  • Brand new yet double function tested and performance tuned prior to shipping
  • PAPST cooling system from German
  • 1 Year Warranty on Parts and accessories and  1 Year Warranty on Labor from a trusted U.S. company
  • Input Voltage: 110vac ~220vac (Auto detected, no switch is necessary)
  • Input Power Frequency: 50 hz / 60 hz (Better performance under 60 hz)
  • Insulation Grade: B
  • Housing Protection Grade: IP21
  • Size: 21'' L  x 16'' W x 11'' H
  • Weight: 38 lbs (42 lbs with box)
  • Certification: CE, CCC, CSA and ISO-9001 certification
  • Power factor: 0.93
  • Power efficiency: 85%


Plasma Cutting:
  • Duty Cycle: 60% at 50 amps and 100% at 35 amps
  • Rated Input Current: 27 amps
  • 3" Per minute @ 1" Steel (Severance Cut)
  • 7" Per minute @ 3/4" Thick Steel
  • 17" Per minute @ 1/2" Thick Steel
  • Air pressure required: 60~70 psi @ 3.6 cfm
Tig Welding:
  • Output Current: 15-200 Amps
  • Power Usage 17 Amps @ 220VAC
  • No Load Voltage: 62V
  • Can Weld: Steel, Stainless, Moly, Ferrous
  • Duty Cycle:  60% @ 200 Amps 100% @ 105 Amps
  • High Frequency Start / HF Welding
  • Working Voltage: 16.9V
  • Gas Flow: 2-5L/min (using Argon supply)
Arc/Stick/MMA Welding:
  • Output Current: 15-200 Amps
  • Power Usage 23 Amps @ 220VAC
  • No Load Voltage: 62V
  • Can Weld: Steel, Stainless, Moly, Ferrous
  • Duty Cycle:  60% @ 200 Amps 100% @ 95 Amps
  • High Frequency Start / HF Welding
  • Working Voltage: 25 Volts
  • New feature added: aluminum welding for stick welding (patent pending)


Accessories:
  • 50A Plasma cutting torch.
  • Tig Welding Torch with 11 ft hose (with long and short caps)
  • Ground cable (9 ft) with clamp.
  • Initial cutting consumables (tip, electrode, o-ring and shield cup).
  • Air filter and regulator with accessories and brackets
  • Air hose
  • Argon regulator (U.S. standard argon regulator with CGA580 connector)

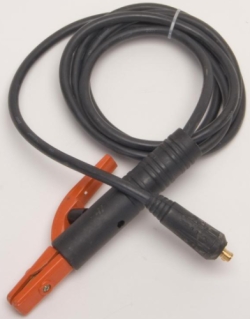

  • Stick (ARC) Holder
  • User Manual
  • You shall provide 60~70 psi air supply, 110vac or 220vac power plug for plasma cutting
